ATV Deckover Trailers
All Aluminum Construction
Adjustable D-Rings
Silver Mod Wheels
5/4″ Pressure Treated Decking
Integrated Perimeter Tie Down Track
7′ Ramps
Torsion Axle(s)
Side or Rear Load
About ATV Deckover

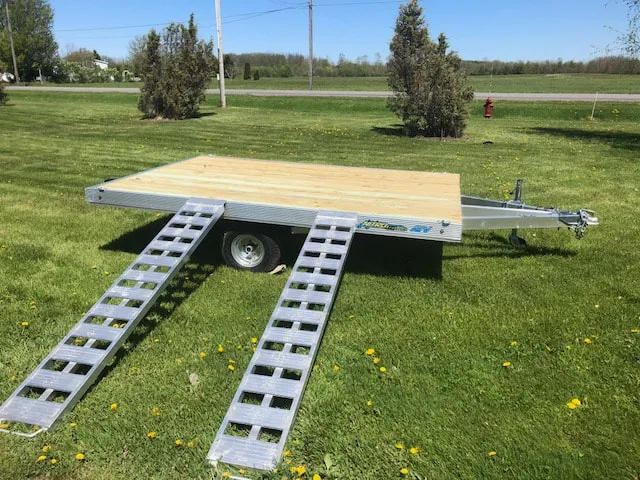

Our ATV Deckover Trailers are specially designed to accommodate multiple ATVs with ease. Featuring a versatile perimeter slide track, these trailers allow you to position your ramps either at the rear or on the sides, offering flexible loading options. The D-ring tie-downs are also adjustable within the perimeter track, enabling you to securely strap down your ATVs from any angle, ensuring safe and stable transport for your vehicles.
7' Wide Single Axle
Model | ATV 7X10S | ATV 7X14S |
---|---|---|
Axle Rating | 3.5K | 3.5K |
Tires | ST205/65-10 | ST205/65-10 |
Decking | 5/4" PT | 5/4" PT |
GVWR | 2,990lbs | 2,990lbs |
Curb Weight | 700lbs | 800lbs |
Payload | 2,290lbs | 2,190lbs |
7' Wide Tandem Axle
Model | ATV 7X10T | ATV 7X14T | ATV 7X14T | ATV 7X18T | ATV 7X20T | ATV 7X22T |
---|---|---|---|---|---|---|
Axle Rating | 2X3.5K | 2X3.5K | 2X3.5K | 2X3.5K | 2X3.5K | 2X3.5K |
Tires | ST205/65-10 | ST205/65-10 | ST175/80R13 | ST175/80R13 | ST175/80R13 | ST175/80R13 |
Decking | 5/4" PT | 5/4" PT | 5/4" PT | 5/4" PT | 5/4" PT | 5/4" PT |
GVWR | 2,990lbs | 2,990lbs | 6,000lbs | 6,000lbs | 6,000lbs | 6,000lbs |
Curb Weight | 700lbs | 800lbs | 1,100lbs | 1,250lbs | 1,325lbs | 1,400lbs |
Payload | 2,290lbs | 2,190lbs | 4,900lbs | 4,750lbs | 4,675lbs | 4,600lbs |
*Some images shown with options. See a dealer for more options, pricing and availability.
